ALLNET Switch full managed industrial 6 Port Gigabit 4x Gigabit - 2x SFP - Lüfterlos - DIN - ALL-SGI8104M

Preis anfragen
SKU: 201710 Kategorie:

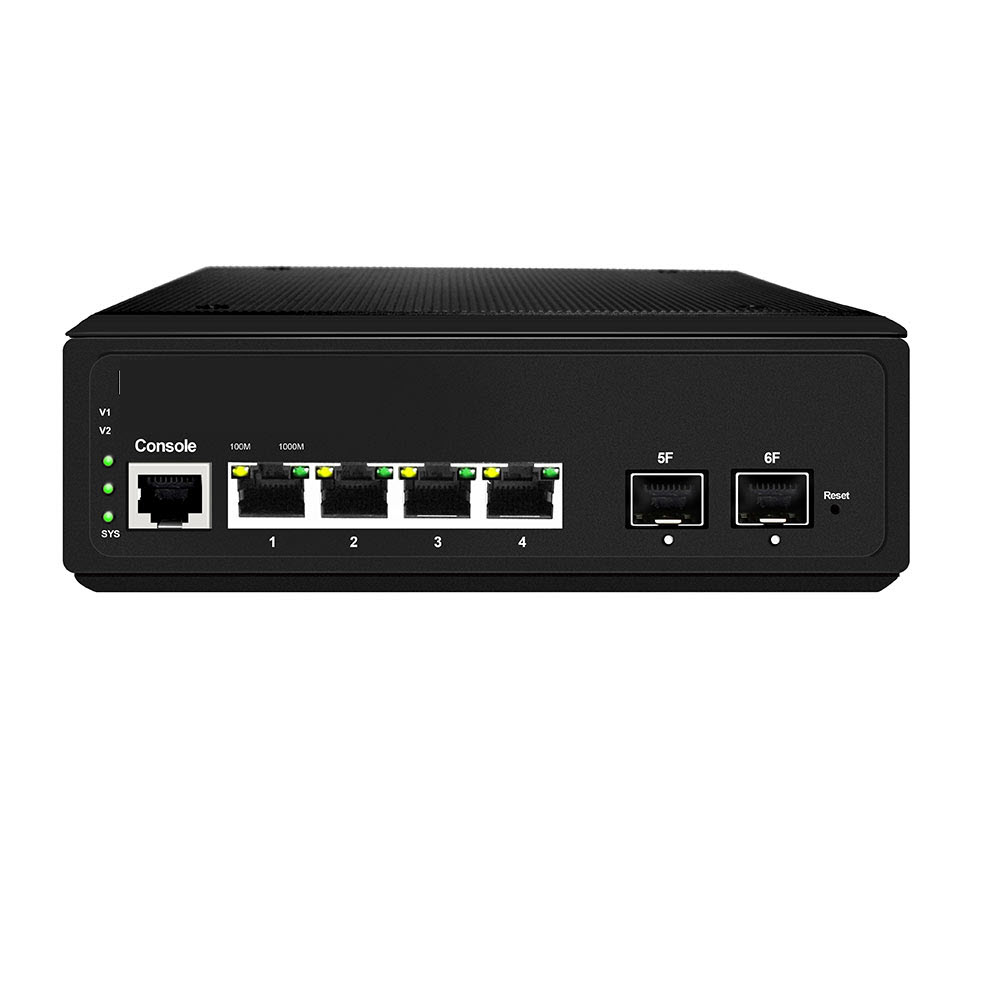

ALLNET Switch full managed industrial 6 Port Gigabit 4x Gigabit / 2x SFP / Lüfterlos / DIN / “ALL-SGI8104M”

This is an Ethernet switch with layer 2+ static routing capability, and advanced ITU-G.8032 ERPS Ring technology to improve the rapid self-recovery capability for critical network applications. LK4006P4C2F features 4 gigabit RJ45 ports + 2 gigabit SFP optical ports, all ports are in an IP40 rugged but compact-sized case, to meet the demands of industrial harsh environment and small space.

Features:

  • Support spanning tree STP (802.1D) and RSTP (802.1W) and MSTP (802.1s)
  • Support enhanced management through WEB, CLI, TELNET, SSH, SNMP.
  • Support cable diagnosis
  • Dual firmware backup
  • Support G.8032 quick ring protocol. Self-recovery time <20ms
  • Support IEEE1588 v2, transparent clock (TC)

This ALL-SGI8104M is an Ethernet switch with layer 2+ static routing capability, and advanced ITU-G.8032 ERPS Ring technology to improve the rapid self-recovery capability for critical network applications. ALL-SGI8104M features 4 gigabit RJ45 ports + 2 gigabit SFP optical ports, all ports are in an IP40 rugged but compact-sized case, to meet the demands of industrial harsh environment and small space.

Fast Recovery Redundant Ring for Critical Network Applications

The ALL-SGI8104M industrial managed switch supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced G.8032 ERPS technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a certain simple Ring network, the recovery time of data link can be as fast as 20ms.

588 Time Protocol for Industrial Computing Networks

The ALL-SGI8104M network switch with 4 port gigabit is ideal for telecom and Carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for IEEE 1588 and synchronous Ethernet.

Strong Layer 2 Features

The ALL-SGI8104M can be programmed for advanced Layer 2 switch management functions such as dynamic port link aggregation, 802.1Q tagged VLAN, Q-in-Q VLAN, private VLAN, Multiple Spanning Tree Protocol (MSTP), QoS, bandwidth control, IGMP snooping and MLD snooping. Via the aggregation of supporting ports, the ALL-SGI8104M series allows the operation of a high-speed trunk group that comes with multiple ports and supports fail-over as well.

Efficient and Various Management Methods

For efficient management, the ALL-SGI8104M management switch is equipped with console, Web and SNMP management interfaces.

With the built-in Web-based management interface, it offers an easy-to-use, platform-independent management and configuration facility.

For text-based management, it can be accessed via Telnet and the console port.

For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management.

Intelligent SFP DDM Function

The ALL-SGI8104M Ethernet switch supports SFP-DDM (digital diagnostic monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

Application

High Stability Networking Solution for Industrial Areas

The ALL-SGI8104M features strong, rapid, self-recovery capability to prevent interruptions and external intrusions. It incorporates ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) into customer’s automation network to enhance system reliability and uptime. The ALL-SGI8104M DIN-rail series is the ideal solution for data centers, service providers and telecoms to build redundant connection and establish high bandwidth for Big Data server farm.

Network Extension Deployment Solution

With its additional 1000BASE-SX/LX SFP fiber optic Ethernet link capability, the administrator now can flexibly choose the suitable SFP transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. They are well suited for applications to uplink to backbone switch and monitoring center in long distance.

Technical Details:

Specifications

Model ALL-SGI8104M
Copper Ports 4-10/100/1000BASE-T RJ45 auto-sensing ports
Fiber Ports 2-100/1000BASE-T SFP interfaces, supports 100/1000Mbps dual mode
Console Ports 1 x RS-232-to-RJ45 serial port (115200, 8, N, 1)
Switch Architecture Store-and-Forward
Switch Fabric 12Gbps/non-blocking
Throughput 8.928Mpps @64 bytes
Address Table 8K entries
Share Data Buffer 4.1 Mb
Jumbo Frame 9216 Bytes
SDRAM 1Gb
Flash Memory 128Mb
Flow Control IEEE 802.3x pause frame for full-duplex

Back pressure for half-duplex

Reset Button >2 sec.: Factory default and reset
Power Supply 12~48 VDC, 50/60Hz, Dual DC
LED Indicators Power: Green

Solid on–power work normal, off–power disconnected

System: Green

Blink–work normally, solid on–soft work abnormal, fast blink–soft upgrade

10/100/1000T RJ45 Interfaces (Port 1 to Port 4): 1000 LNK/ACT (Green),

10/100 LNK/ACT (yellow),

Blink–port connected with data transmission; Solid on–port connected

without data transmission

100/1000Mbps SFP Interfaces (Port 5 to Port 6): Green

Blink- port connected with data transmission; Solid on- port connected

without data transmission

EMC Surge Immunity: 6KV Per: IEC61000-4-5

ESD Protection: ESD Level 4 Per: IEC61000-4-2;

EFT Level 4 Per: IEC61000-4-4

Dimension 145x112x47.2mm
Weight 0.6kg
Working Temperature -40°C to 75°C
Storage Temperature ‘-40? to 80 ?
MTBF 50,000hrs

Layer 2 functions

Port configuration Auto-negotiation

Flow Control

Port Mirror: TX/RX/BOTH; Many-to-1 monitor

CPU Mirror

Traffic statistics

Link Aggregation Static link aggregation

LACP(Dynamic Trunk/Static Trunk)

Algorithm based on Source/Destination MAC

Algorithm based on Source/Destination IP

MAC Table Aging Time

Static MAC address

Dynamic MAC address management

VLAN 4094 Active VLANs

4094 VID

802.1Q Tag VLAN

Port VLAN

Protocol VLAN

MAC VLAN

Voice VLAN

802.1ad Q-in-Q tunneling

Private VLAN (Protected port)

GARP/GVRP

ACL 256ACLs

L2, L3 e L4

Time-based ACL

IP ACL

MAC ACL

MAC-IP ACL

User-Defined ACL

ICMPv6

Spanning tree 802.1D Spanning Tree Protocol (STP)

802.1w Rapid Spanning Tree Protocol (RSTP)

802.1s Multiple Spanning Tree Protocol (MSTP)

Loop Guard

Root Guard

TC-BPDU Guard

BPDU Guard

BPDU Filter

Ring Protection <20ms G.8032 ERPS Ring

Fast Ring

LINKOH Ring, < 20ms

Multicast 256 groups

IGMP v1/v2/v3 Snooping, Fast Leave

MLD Snooping

Multicast VLAN

IGMP filter

MVR

Multicast Routing

QOS 8 mapping IDs to 8 level priority queues

CoS port-based

CoS 802.1p-based

CoS DSCP-based

Scheduling algorithms SP, WRR, SP+WRR

Storm Control (Broadcast, Multicast, Unknown Unicast)

Bandwidth control per port

SWRR, DWRR for Scheduling

Flow Redirect

Precedence

TOS

Rate Limiting(Ingress/Egress)

Stri Priority

Security Features Port Security

MAC address filter

ARP Association (Manual, ARP scanning, DHCP snooping)

ARP Protection

AAA

DAI

DoS (Denial of Service)

Classification of packages based on: End.MAC, IP End, TCP / UDP Ports,

Protocol Type;

802.1x Authentication (port-based e MAC-based)

TACACS/TACACS+ Authentication

RADIUS Authentication

DHCP Filter

Guest VLAN

SSLv2/SSLv3/TLSv1

SSHv1/SSHv2

Restriction of WEB access based on: IP Address, And. MAC and Port;

Port Isolation

Loopback detection

Management SNMP v1/v2c/v3 with Full Private MIBs

RMON 4 groups

WEB (HTTP/HTTPS)

CLI (Telnet, Console, SSHv1/v2)

Firmware upgrade via console/web/TFTP

Configuration Backup/Reload

Dual Firmware

LLDP

Configuration Export/Import

CDP Aware

OAM (IEEE802.3ah)

CFM (IEEE802.1ag)

sFlow

Telnet Client

Synchronization,

IEEE1588

Support IEEE1588v2 transparent clock
Other Features DNS Client

DHCP Relay

DHCP Client

DHCP Snooping

DHCP Option 66

DHCP Option 67

DHCP Option 82

NTP/SNTP Client

UPNP

UDLD

PoE management Total PoE power budget control

Per port PoE function enable/disable

PoE admin-mode control

PoE port power feeding priority

Per PoE port power limitation

PD classification detection

PD alive check

PoE schedule

Soft-reboot PoE Non-stop

Maintenance Cable Diagnostics

Ping

SFP DDM (Digital Diagnostics Monitoring)

Thermal protection

System log (Local and Remote)

Memory and CPU Monitoring

Tracert/ Tracert 6

 Layer 3 functions

Static Routing IPv4 Unicast: Static Routing (Software Base)

IPv6 Unicast: Static Routing (Software Base)

IPV6 IPv6 neighbor discovery (ND)

Path maximum transmission unit (MTU) discovery

Internet Control Message Protocol (ICMP) version 6

TCPv6/UDPv6

Ping6

Telnet(v6)

Http/Https

Interface IPV6

ACL IPV6

Gewicht 0,9 kg
EAN

4038816201713

Hersteller

ALLNET

Herstellerartikelnummer

ALL-SGI8104M

Garantie

24 Monate

Datenblatt_EN

https://shop.allnet.de/media/pdf/76/cd/c9/201710-Datenblatt_EN.pdf

Datenblatt_FR

https://shop.allnet.de/media/pdf/41/94/9e/201710-Datenblatt_FR.pdf

Datenblatt_ES

https://shop.allnet.de/media/pdf/12/17/2d/201710-Datenblatt_ES.pdf

Management

full managed

SFP Port Anzahl

2

LAN Geschwindigkeit

1Gbit/S

PoE Port Leistung

30W at

SFP Geschwindigkeit

SFP 1GBit

PoE Budget

<200 Watt

Belüftung Switch

Lüfterlos

Einsatzort Switch

Industrial DIN

Anzahl Ports PoE/LAN

4/0

Webseite

http://www.allnet.de
