Highlights:
- 12*10/100/1000M PoE-Downlink-Ports, 4*1000M SFP-Ports
- Unterstützt PoE-Leistung von bis zu 30W/Port
- Unterstützt L3-Management, wie OSPF, RIP, QoS, VLAN, MSTP, Multi-Broadcast, Ports-Management und PoE-Management
- 6KV Überspannungsschutz, 8KV Kontakt /15KV Luft ESD-Schutz
- Ereitererter Temperaturbereich -40°C ~+75°C

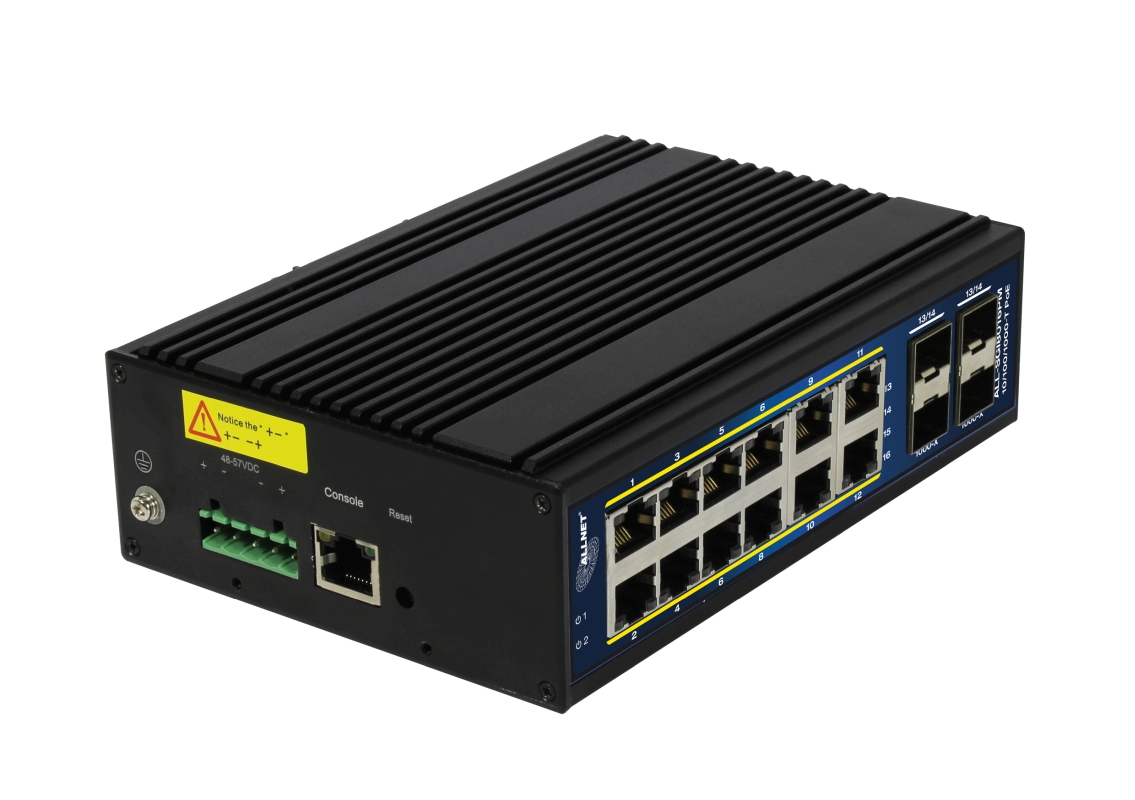

Der ALLNET ALL-SGI8016PM ist ein professioneller und dennoch erschwinglicher industrieller L3 PoE-Switch mit 16 Gigabit-Ports, der bis zu 12*10/100/1000M PoE-Downlink-Ports und 4* 1000M SFP-Ports unterstützt. Die 12*10/100/1000M Ports unterstützen PoE+ und entsprechen dem IEEE 802.3af/at Standard, die PoE-Leistung pro Port beträgt bis zu 30W.

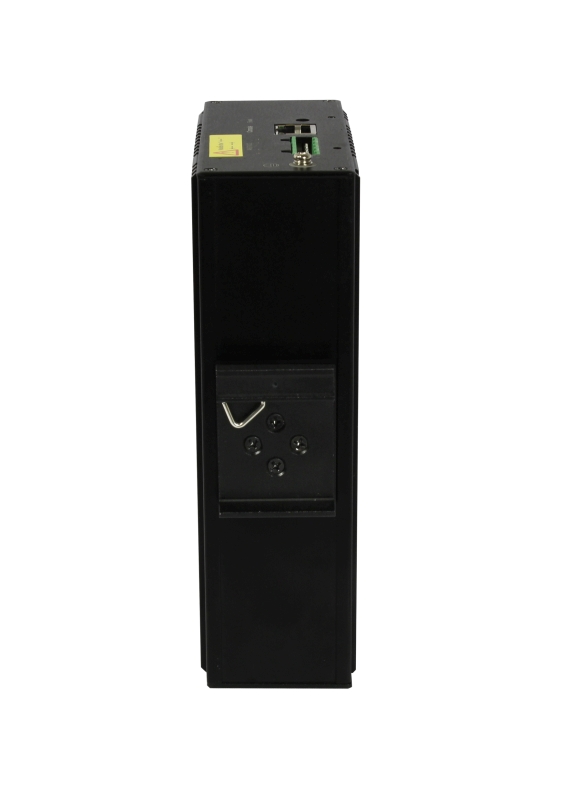

Er unterstützt ein L3-Management wie OSPF, RIP, QoS, VLAN, MSTP, Multi-Broadcast, Port-Management und PoE-Management und verfügt über 6KV Überspannungsschutz, 8KV Kontakt/ 15KV Luft ESD-Schutz. Die Wand-, Tisch- und Hutschieneninstallation ist zuverlässig und langlebig und kann in Sicherheitsnetzwerken, bei der Videoüberwachung, in der Netzwerktechnik und bei anderen Gelegenheiten eingesetzt werden.
Technical Details:
Parameter | Specifications |
Power supply | Powered by power adaptor |
Range of voltage | 2*DC 48~57V, redundancy power supply |
Consumption | Self consumption<20W |
Downlink ports | 10/100/1000Base-T 30W PoE RJ45(IEEE 802.3af/at) |
Uplink ports | Ports 13~16 1000M SFP slots |
Cable and distance | Use cat5e/6,100m max |
Standard | IEEE802.3, IEEE802.3u, IEEE802.3z |
Switch fabric | 32Gbps |
Though put | 23.8Mpps |
Buffer | 4M |
MAC address table | 16K |

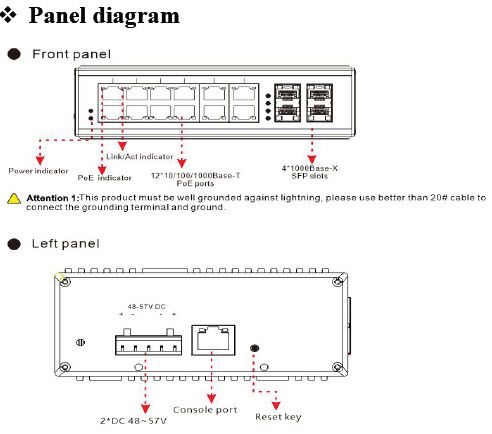

Indicator | Power: 2 *red ; Uplink 13~16: green LEDs indicate Link/Act Downlink 1~12: On RJ45 green LEDs indicate Link/Act, yellow LEDs indicate PoE |
Protection | Surge: 6KV, standard: IEC61000-4-5 ESD: 8KV: contact/15KV: air, standard:IEC61000-4-2 |
Working temperature | -40°C~+75°C |
Storage temperature | -40°C~+85°C |
Humidity | 0~95%(No condensation) |

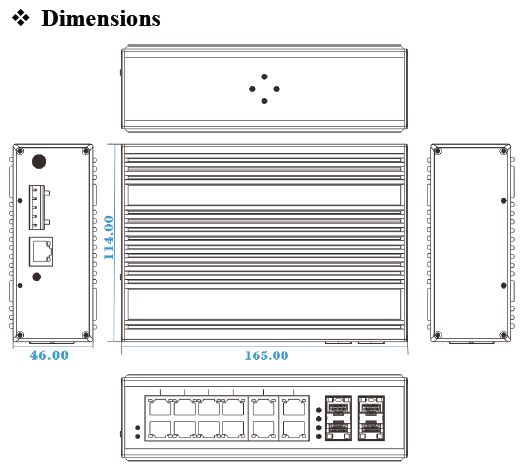

Dimension(L×W×H) | 165 mm×114 mm×46mm |
Material | Metal |
Colour | Black |
Net-weight | 530g |
L2 Features Port configuration | Auto-negotiation |
Flow Control | |
Port Mirror | |
L2 Features Link Aggregation | Traffic statistics |
Static link aggregation | |
LACP | |
Algorithm based on Source/Destination MAC | |
Algorithm based on Source/Destination IP | |
8 groups | |
8 ports per group | |
L2 Features MAC Table | Aging Time |
Static MAC address | |
Dynamic MAC address management | |
L2 Features VLAN | 4K Active VLANs |
4K VID | |
802.1Q Tag VLAN | |
Port VLAN | |
Protocol VLAN | |
MAC VLAN | |
Management VLAN | |
Voice VLAN | |
Q-in-Q | |
Private VLAN | |
GARP/GVRP | |
L2 Features ACL | 64 ACLs |
L2, L3 e L4 | |
Time-based ACL | |
L2 Features Spanning tree | 802.1D Spanning Tree Protocol (STP) |
802.1w Rapid Spanning Tree Protocol (RSTP) | |
802.1s Multiple Spanning Tree Protocol (MSTP) | |
Loop Guard | |
Root Guard | |
TC-BPDU Guard | |
BPDU Guard | |
BPDU Filter | |
L2 Features Multicast | 256 groups |
IGMP v1/v2/v3 | |
Fast Leave | |
Multicast VLAN | |
Static Multicast | |
Multicast Filter | |
IGMP Statistics | |
MLD Snooping | |
L2 Features PoE management | Support total power consumption control |
Support single port PoE ON/OFF | |
Support port output priority | |
L2 Features QOS | 4 priority queues |
CoS port-based | |
CoS 802.1p-based | |
CoS DSCP-based | |
Scheduling algorithms SP, WRR, SP+WRR | |
Storm Control (Broadcast, Multicast, Unknown Unicast) | |
Bandwidth control per port | |
Security Features | Port Security |
MAC address filter | |
ARP Association (Manual, ARP scanning, DHCP snooping) up to 200 entries | |
ARP Protection | |
DoS (Denial of Service) | |
Classification of packages based on: End.MAC, IP End, TCP / UDP Ports, Protocol Type | |
802.1x Autentication (port-based e MAC-based) | |
TACACS/TACACS+ Autentication | |
RADIUS Autentication | |
DHCP Filter | |
Guest VLAN | |
SSLv2/SSLv3/TLSv1 | |
SSHv1/SSHv2 | |
Restriction of WEB access based on: IP Address, And. MAC and Port | |
Port Isolation | |
Local User Name Password Authentication (2 levels) | |
Loopback detection |
