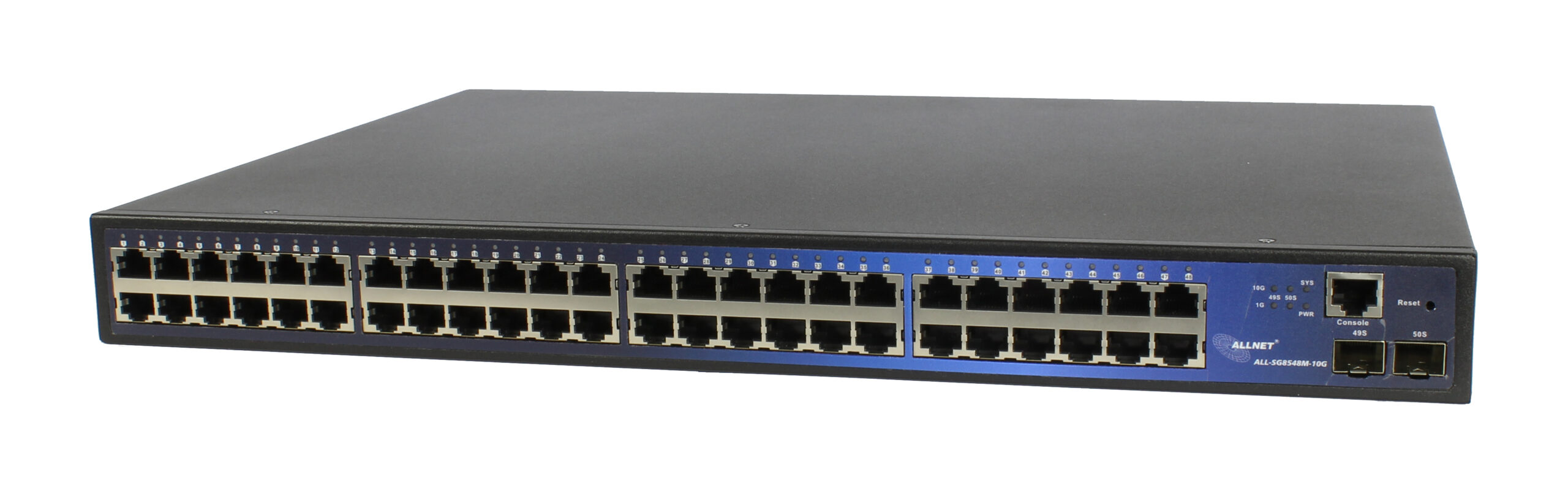

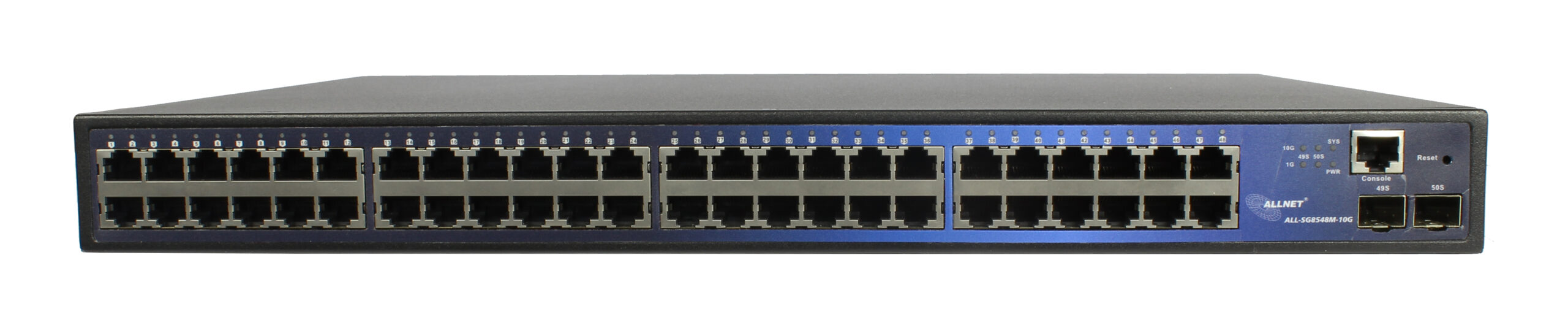

ALLNET Switch smart managed 48 Port Gigabit - 48x LAN - 2x SFP+ - 19" - ALL-SG8548M-10G

Preis anfragen
SKU: 152316 Kategorie:

Highlights:

  • Entry smart managed 10G Switch von ALLNET
  • Integrierter Hochleistungs-Cortex-A9-Prozessor.
  • 48x 10/100/1000Mbit/s Ports
  • 2x 10G SFP+ oder 1G SFP Ports
  • Switching-Kapazität 128Gbps

Der ALL-SG8548M-10G ist ein Layer-2 Switch, der für Hochsicherheit und Hochleistungsnetzwerke entwickelt wurde. Er bietet 48x 10/100/1000Mbps selbstanpassende RJ45 Ports plus 2x 10-Gigabit 1000/10000Mbps SFP+ optischen Ports, um die höchstmögliche Bandbreite im Upstream zu gewährleisten. Die Verwendung von Store-and-Forward-Technologie in Kombination mit dynamischer Speicherzuweisung ermöglicht die bandbreiteneffektive Zuweisung zu jedem Port.

Technical Details

Chipset

2*BCM53346+2*B50282+6*PD69208M+PD69200

Standards

IEEE 802.3i,IEEE 802.3u,IEEE802.3ab,IEEE802.3x, IEEE802.3az,IEEE802.3af?IEEE802.3at?IEEE802.3ae

Number of Ports

48 x 10/100/1000Mbps ports

 2 x 10G SFP+ ports

1x  Console port

Network Media (Cable)

10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
1000Base-T: UTP category 5e, 6 cable (maximum 100m)

1000Base-X:MMF,SMF

10GBase-X:MMF,SMF

Transfer Method

Store-and-Forward

MAC Address Table

16K

Switching Capacity

176Gbps

Packet Forwarding Rate

130.944Mpps

Packet Buffer

1.5MBytes

Jumbo Frame

12KBytes

Indicators:

Per Device : Power, Sys

Per Port Link/Activity/Speed,PoE

Power Supply 100~240VAC,50/60Hz,30W
Dimensions (W×D×H) 440x330x44.5mm (19” metal case)
Environment

Operating Temperature: 0?~45°C

Storage Temperature: -40?~70°C

Operating Humidity: 10%~90% non-condensing

Storage humidity: 5%~90% non-condensing

Management
  • Support Telnet, SSH remote management
  • Support the SNMP
  • Support cluster with cluster network management
Port features
  • Support port isolation
  • Support port loop detection
  • Support the ULDP
  • Support LLDP
  • Support the Port Channel configuration
  • Support LED shut – off
  • Support Jumbo packet
VLAN&MAC Adress
  • Support for MAC/strategy/port/protocol/IP subnet VLAN
  • Support Dot1q tunnel
  • Support GVRP
  • VLAN – translation
  • Support support MAC address automatic learning and aging
  • Support the source MAC address filtering
STP Support STP
QoS
  • Support WRR, WDRR queue scheduling algorithm
  • Support flexible QinQ operation
Three layer forward and routing protocols
  • Support three layer forward
  • Support the ARP configuration
  • Support the static routing, OSPF, RIP configuration
  • Support IPv4 and IPv6 routing
DHCP
  • Support the DHCP relay
  • Support the DHCP Server
  • Support DHCP Snooping
Multicast protocol
  • Support DCSCM configuration
  • Support IGMP Snooping
  • Support IPv6 multicast, MLD configuration
Safety features
  • Support 802.1 x, the Radius authentication
  • Support for AM
  • Supports IPv6 security RA configuration
  • Support the MAB configuration
  • Support SSL
  • Support for protection against Dos attacks
  • Support ACL
Reliability
  • Support MRRP
  • Support ULPP
The network time
  • Support SNTP
  • Support the NTP
Traffic monitoring
  • Support port mirror
  • Support the sFlow
Gewicht 5.3 kg
Größe 216 × 133 × 42 cm
EAN

4038816152312

Hersteller

ALLNET

Herstellerartikelnummer

ALL-SG8548M-10G

Garantie

24 Monate

Datenblatt

https://shop.allnet.de/media/pdf/70/9a/87/152316-Datenblatt.pdf

Datenblatt_EN

https://shop.allnet.de/media/pdf/b0/87/79/152316-Datenblatt_EN.pdf

Datenblatt_FR

https://shop.allnet.de/media/pdf/41/16/64/152316-Datenblatt_FR.pdf

Datenblatt_ES

https://shop.allnet.de/media/pdf/a4/df/02/152316-Datenblatt_ES.pdf

Belüftung Switch

Mit Lüfter

Einsatzort Switch

19"

SFP Geschwindigkeit

SFP+ 10GBit

SFP Port Anzahl

2

LAN Geschwindigkeit

1Gbit/S

Anzahl Ports PoE/LAN

0/48

Management

smart managed (WebGui)
