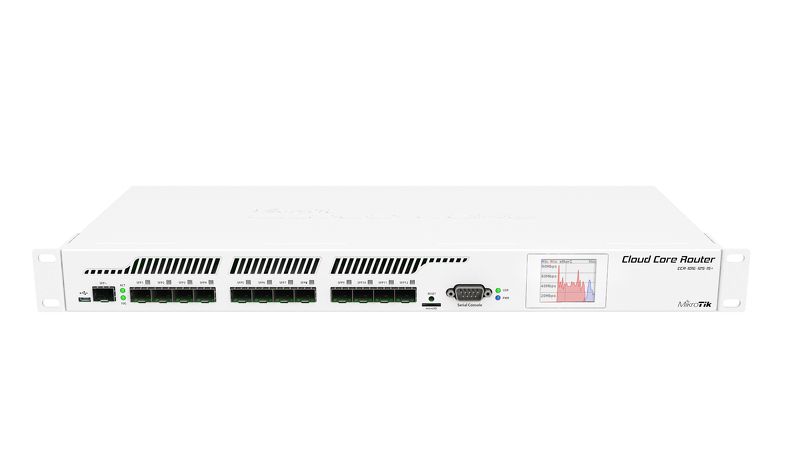

MikroTik Cloud Core Router CCR1016-12S-1S+, 12x SFP, 1x SFP+

Preis anfragen
SKU: 115566 Kategorie:

Cloud Core Router 1016-12S-1S+ with Tilera Tile-Gx16 CPU (16-cores, 1.2Ghz per core), 2GB RAM, 12xSFP cages, 1xSFP+, cage, RouterOS L6, 1U rackmount case, Dual PSU, LCD panel


CCR1016 is an industrial grade router with a cutting edge 16 core Tilera CPU. If you need many millions of packets per second – Cloud Core Router is your best choice.

This model has twelve SFP ports and one SFP+ port for 10G connectivity. It is available in a 1U rackmount case and also has a serial console port, a touchscreen LCD and a USB port.

The CCR1016-12S-1S+ comes with redundant power supplies and one RJ45 SFP 10/100/1000M copper module.

SFP+ cage supports regular SFP (1.25G) modules as well

Product specifications


Product code CCR1016-12S-1S+


CPU nominal frequency 1.2 GHz

CPU core count 16

Size of RAM 2 GB

Architecture TILE

10/100 Ethernet ports None

10/100/1000 Ethernet ports None

MiniPCI slots 0

MiniPCI-e slots 0

Wireless chip model None

Number of USB ports 1

Power Jack 2

802.3af support No

Supported input voltage 24 V – 24 V

PoE in No

PoE out No

Voltage Monitor Yes

CPU temperature monitor Yes

PCB temperature monitor No

Operating System RouterOS v6

Operating temperature range Max ambient temperature 50° @ 1.2GHz; 70° @ 1GHz CPU core frequency

License level 6

Current Monitor Yes

CPU TLR4-01680CG-12CE-A3a

Max Power consumption 44 W

SFP ports 12

SFP+ ports 1

USB slot type microUSB type AB

Serial port RS232

Suggested price $745.00

Gewicht 2,78 kg
