RouterBOARD 911G with 600Mhz Atheros CPU, 32MB RAM, 1xGigabit LAN, built-in 5Ghz 802.11a/n 2×2 two chain wireless, 2xMMCX connectors, RouterOS L3
RB911G-5HPnD

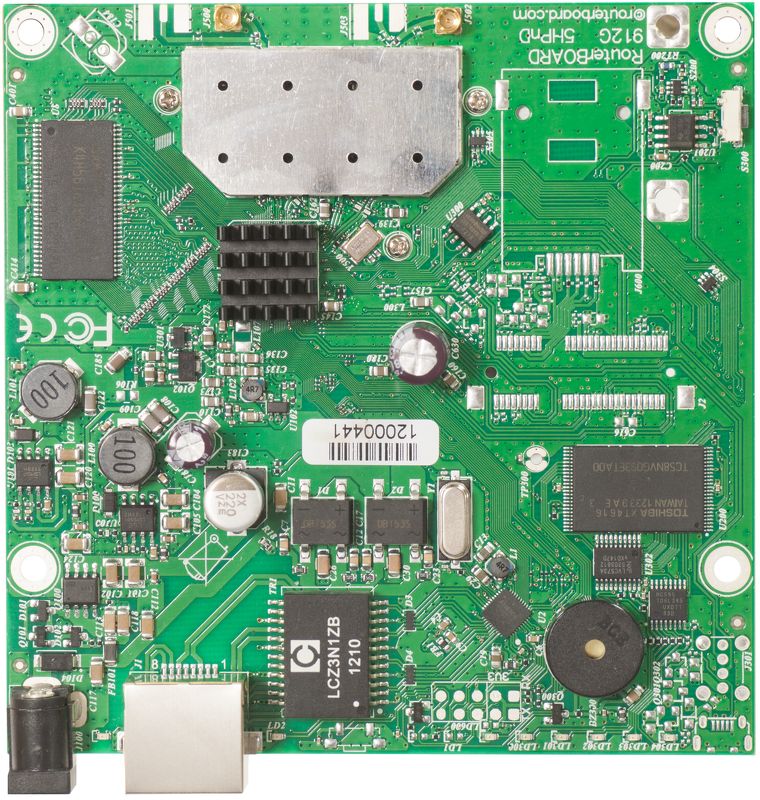

The RB911G-5HPnD is a small wireless router with an integrated 5Ghz high power wireless card. The Gigabit port helps to utilize the full potential of 802.11n wireless speeds.
The integrated wireless card is capable of up to 1000mW output power. It has built in 16kV ESD protection on both the Ethernet and the
MMCX ports.
Product specifications
Details
Product code RB911G-5HPnD
CPU nominal frequency 600 MHz
CPU core count 1
Architecture MIPS-BE
Size of RAM 32 MB
10/100 Ethernet ports 0
10/100/1000 Ethernet ports 1
MiniPCI slots 0
MiniPCI-e slots 0
Wireless chip model AR9342-BL1A
Wireless standards 802.11a/n
Number of USB ports 0
Power Jack 1
PoE in Yes
Voltage Monitor Yes
CPU temperature monitor No
PCB temperature monitor Yes
Dimensions 105x105mm
Operating System RouterOS
Operating temperature range -35C to +65C
License level 3
Antenna gain DBI No
Current Monitor No
CPU AR9342-BL1A
Max Power consumption 11W at 24V
SFP ports 0
SFP+ ports 0
Number of chains 2
Serial port None
Suggested price $55.00
