MikroTiK Routerboard RB922UAGS-5HPacD

Preis anfragen
SKU: 115677 Kategorie:

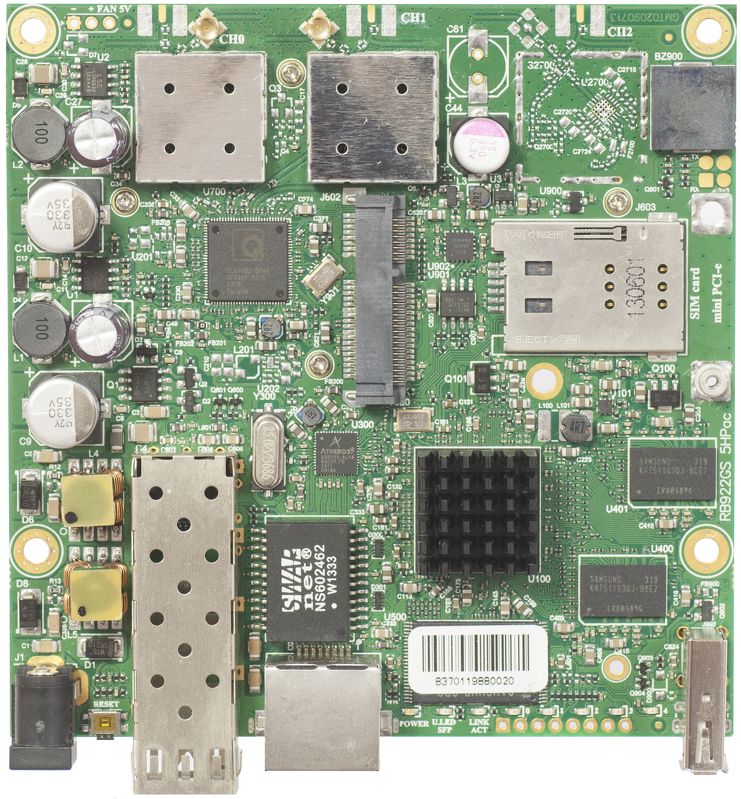

RouterBOARD 922UAGS with 720MHz Atheros CPU, 128MB RAM, 1xGigabit LAN, USB, 1xSFP, miniPCIe, SIM, slot, built-in 5Ghz 802.11a/c 2×2 two chain wireless, 2xMMCX connectors


RouterBOARD RB922UAGS-5HPacD is a very versatile wireless router, perfect for assembling your own solution. It supports the new 802.11ac standard for high speed wireless (up to 866Mbit datarate and 20/40/80MHz channels). The device has ports and slots for many uses: 1x SFP cage, miniPCIe slot with SIM for 3G/4G modem or another wireless card, USB port, Gigabit Ethernet port and two MMCX connectors for the built in powerful 1300mW 802.11ac 2×2 radio. Comes with RouterOS L4 (AP) license.

Product specifications


Product code RB922UAGS-5HPacD

CPU nominal frequency 720 MHz


CPU core count 1

Size of RAM 128 MB

10/100 Ethernet ports None

10/100/1000 Ethernet ports 1

MiniPCI slots 0

MiniPCI-e slots 1

Wireless chip model QCA9882-BR4A-R

Wireless standards 802.11ac

Number of USB ports 1

Power Jack 1

802.3af support no

Supported input voltage 8 V – 30 V

PoE out No

PoE in Yes

Voltage Monitor Yes

CPU temperature monitor No

PCB temperature monitor Yes

Dimensions 105x105mm

Operating System RouterOS

License level 4

Antenna gain DBI No

Current Monitor No


Max Power consumption 17 W

SFP ports 1

SFP+ ports None

USB slot type USB type A

Number of chains 2

Serial port None

Suggested price $99.00

Gewicht 0,107 kg
