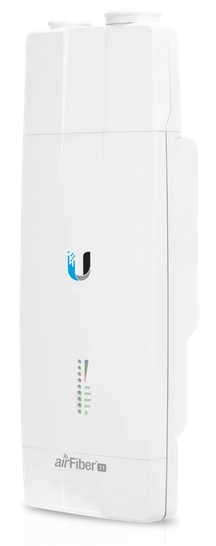

Betrieb in Deutschland nicht erlaubt !!! Not allowed to use in Germany Only for Export Dish not included 50V, 1.2A PoE Gigabit Adapter (Included) Breaking free from the congested 5 GHz band, airFiber® 11 is the first modular airFiber radio system purpose-built for the 11 GHz licensed frequency market. Housed in a compact, highly efficient form factor, airFiber 11 delivers amazing wireless gigabit+ performance, low latency, and long range, making it ideal for carrier backhaul, building-to-building enterprise use, or public safety applications.
Full duplex Point-to-Point radio 11 GHz frequency operation Up to 1.2+ Gbps throughput Proprietary INVICTUS processor Integrates with airFiber® 11 GHz antennas Utilizes distinct Rx and Tx frequencies Accepts PoE or DC power Secure 128-bit AES encryption Dimensions 327 x 112 x 86 mm (12.87 x 4.41 x 3.39″) Weight 2.26 kg (5.0 lb) RF Connectors (4) SMA Weatherproof, Two per Chain: TX 0, RX 0 (Chain 0) and TX 1, RX 1 (Chain 1) (2) N-Type Waterproof, One per Duplexer Power Supply 50V, 1.2A PoE Gigabit Adapter (Included) Power Method Passive Power over Ethernet, DC Power Block Supported Voltage Range 38-56VDC Certifications FCC Part 101, ETSI EN 302 217 Mounting AF-11G35 Mount Compatible Operating Temperature -40 to 55° C (-40 to 131° F) Networking Interface Data Management (1) 10/100/1000 Ethernet Port (1) 10/100 Ethernet Port System Processor INVICTUS 2 IC Maximum Throughput 1.2+ Gbps Encryption 128-bit AES OS airOS F Wireless Modes SISO/MIMO Radio Operating Frequency 10.7-11.7 GHz (Depends on Regulatory Region*) Max. Conducted TX Power 30 dBm (Depends on Regulatory Region*) Frequency Accuracy ± 1 ppm Channel Bandwidth 3.5/5/7/10/14/20/ 28/30/40/50/56 MHz Selectable** Programmable Uplink and Downlink Duty Cycles
* For region-specific details, refer to the Compliance chapter of the airFiber AF-11FX User Guide at ui.com/download/airfiber ** Channel widths may vary according to country/region regulations.
