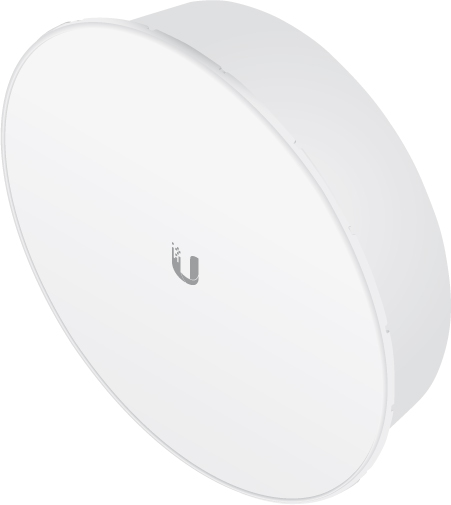

Ubiquiti PowerBeam M5, ISO, antenna 300mm 5GHz AirMax CPE

Preis anfragen
SKU: 123021 Kategorie:

Processor Specs Atheros MIPS 74Kc, 560 MHz
Memory 64 MB DDR2, 8 MB Flash
Networking Interface (1) 10/100 Ethernet Port
Wireless Approvals FCC, IC, CE
RoHS Compliance Yes
PBE-M5-300-ISO Physical/Electrical/Environmental
Dimensions 364 x 364 x 276 mm (14.33 x 14.33 x 10.87″)
Weight 2.55 kg (5.62 lb)
Power Supply 24V, 0.5A PoE (Injector included)
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range 20-26VDC
Max. Power Consumption 6W
Gain 22 dBi
Operating Frequency
Worldwide
USA
5170 – 5875 MHz
5725 – 5850 MHz
Wind Loading 210 N @ 200 km/h (47 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
LEDs (1) Power, (1) LAN, (4) WLAN
Signal Strength LEDs Software-Adjustable to Correspond to Custom RSSI Levels
Channel Sizes 5/8/10/20/30/40 MHz
Polarization Dual Linear
Enclosure Outdoor UV Stabilized Plastic
Mounting Pole-Mount Kit Included
ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature -40 to 70° C (-40 to 158° F)
Operating Humidity 5 to 95% Non-Condensing
Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration Test IEC 68-2-6
Temperature Shock Test IEC 68-2-14
UV Test IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5

Gewicht 3,354 kg
EAN

0810354023804

Hersteller

Ubiquiti

Herstellerartikelnummer

PBE-M5-300-ISO

Webseite

http://www.ubnt.com/
