Highlights:

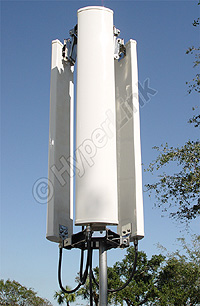

- 3x Vertical Polarizierte Sector Antenne im 2400 – 2500 Ghz ISM Band
- Abstrahlcharakteristik Directional = Richtantenne
- Abstrahlwinkel 3x 120° Grad Horizontal und 3x 15° Vertikal

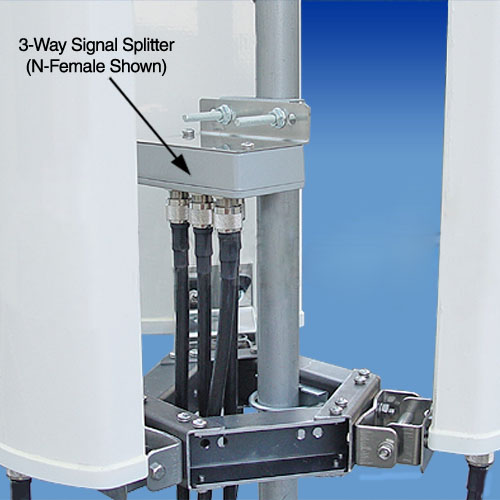

- Anschluss N-Type Buchse incl. Signal-Splitter
- Mastemontage
- Gewicht 6,3kg
Specifications
| Frequency | 2400 – 2500 MHz |
| Antenna Gain | 14 dBi* |
| Polarization | Vertical |
| Horizontal Beam Width | 120° |
| Vertical Beam Width | 15° |
| Lightning Protection | DC Ground |
| Power Rating (Single Fed) | 25 Watts |
| Antenna Radome Material | UV-inhibited Plastic |
| Mounting System Material | Stainless Steel |
| Mounting (Round Mast) | 1¼“ to 2″ (31.7 to 50.8 mm) dia. |
| Mounting (Square Mast/Beam) | 3¼“ (82.5 mm) square max. |
| Dimensions | 20″ (508 mm) x 17″ (432 mm) O.D.** |
| Weight | 14 lbs. (6.3 kg) |
| RoHS Compliant | Yes |
