Highlights:
- 2.4 ISM Band
- IEEE 802.11b und 802.11g Wireless LAN
- Bluetooth
- Wireless Video System
- Multipaint und Mobile Applications

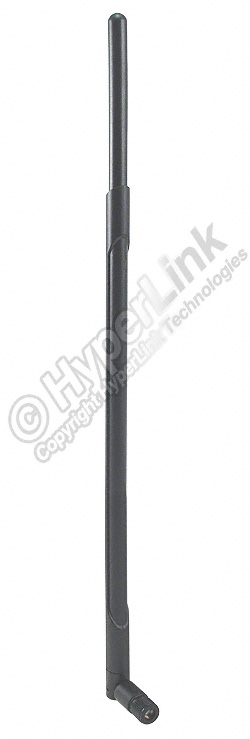

Diese Hochleistungs- rundstrahlende 2,4 GHz WiFi Antenne bietet eine breite Abdeckung. Die Antenne ist Ideal für IEEE 802.11b und 802.11g Wireless LAN, Bluetooth und anderen WLAN Anwendungen geeignet.
Specifications
Electrical Specifications
| Frequency | 2400-2500 MHz |
| Gain | 9 dBi |
| Horizontal Beam Width | 360° |
| Vertical Beam Width | 25° |
| Impedance | 50 Ohm |
| Max. Power | 50W |
| VSWR | < 1.5:1 |
Mechanical Specifications
| Weight | 2.1 oz. (60 g) |
| Length | 15.1″ (384 mm) |
| Max. Diameter | 0.50″ (12.7 mm) |
| Finish | Matte Black |
| Connector | Reverse Polarity SMA Plug |
| Operating Temperature | -40° C to 60° C |
| Polarization | Vertical |
| Flame Rating | UL 94HB |
| RoHS Compliant | Yes |
