Highlights:
- 1/2,9″ CMOS progressive Scan
- Bis zu 1920 x 1080 Auflösung, 30fps
- 22-facher optischer Zoom (5,2~114,4mm)
- Ultra 265, H.265, ONVIF
- Smart IR, bis zu 150m
- Alarm-E/A, Audio-E/A
- DC12V, 16~30W
- IP66, -40°C ~ +65°C
- PoE (PSE erforderlich)
Optik
- 22-facher optischer Zoom
- Infrarot-Technologie der fünften Generation, mehr als 150m IR-Entfernung
- IR-Antireflexionsfenster zur Erhöhung der Infrarot-Transmission
- Optisches Glasfenster mit höherer Lichtdurchlässigkeit
- Intelligente IR
- EIS (Elektronische Bildstabilisierung)
Komprimierung
- Ultra 265, H.265, H.264, MJPEG
- Integrierter intelligenter Algorithmus
- 3-fach Streams
- Kundenspezifisches OSD
Netzwerk
- ONVIF-Konformität
Struktur
- Intelligente Temperaturregelungstechnik
- Effektiveres Wärmeableitungssystem
- 6 KV Überspannungsschutz für die Netzwerkschnittstelle ausgelegt
- IP66
Technical Details:

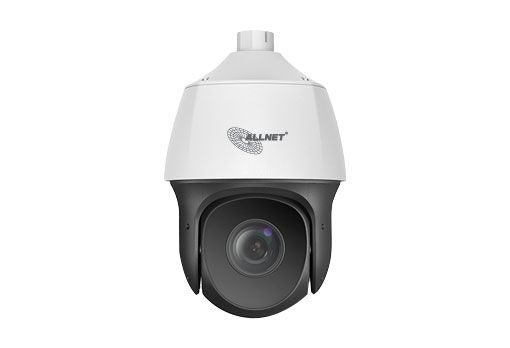

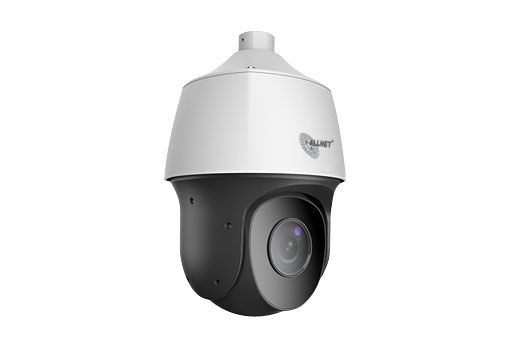

| ALL-CAM2498-LEP | |||||||
| Camera | |||||||
| Sensor | 1/2.9″, 2.0 megapixel, progressive scan, CMOS | ||||||
| Lens | 5.2 ~ 114.4mm, AF automatic focusing and motorized zoom lens | ||||||
| Digital Zoom | 16 | ||||||
| Optical Zoom | 22 | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||
| Angle of View (V) | 5.2 | 83.6 | 33.4 | 16.7 | 8.4 | ||
| Angle of View (O) | 114.4 | 1838.6 | 735.4 | 367.7 | 183.9 | ||
| Angle of View (H) | 54.40° ~ 3.44° | ||||||
| Angle of View (V) | 39.2° ~ 1.9° | ||||||
| Angle of View (O) | 66.9° ~ 4.1° | ||||||
| Shutter | Auto/Manual, shutter time: 1 ~ 1/100000s | ||||||
| Minimum Illumination | Colour: 0.01Lux (F1.5, AGC ON) 0Lux with IR | ||||||
| Iris | Auto/Manual; F1.5 ~ F3.8 | ||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| Digital noise reduction | 2D/3D DNR | ||||||
| S/N | >52 dB | ||||||
| IR Range | UP to 150m (492ft) | ||||||
| Defog | Digital Defog | ||||||
| WDR | 120db | ||||||
| Video | |||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||||
| Frame Rate | Main Stream: 2MP (1920*1080), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps | ||||||
| HLC | Supported | ||||||
| BLC | Supported | ||||||
| EIS | Supported | ||||||
| OSD | Up to 8 OSDs | ||||||
| Privacy Mask | Up to 24 areas | ||||||
| ROI | Up to 8 areas | ||||||
| Motion Detection | Up to 4 areas | ||||||
| Smart | |||||||
| Behavior Detection | Line crossing detection, Intrusion detection, Auto tracking, Master-slave Linkage | ||||||
| Intrusion | Enter and loiter in a pre-defined virtual region | ||||||
| cross line | Cross a pre-defined virtual line | ||||||
| motion detection | Moving within a pre-defined virtual region | ||||||
| Recognition | Face detection, Audio detection | ||||||
| Statistical Analysis | People counting | ||||||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||||
| Audio | |||||||
| Audio Compression | G.711 | ||||||
| Two-way Audio | Supported | ||||||
| Suppression | Supported | ||||||
| Sampling Rate | 8KHZ | ||||||
| Storage | |||||||
| Edge Storage | Micro SD, up to 256GB | ||||||
| Network Storage | ANR | ||||||
| Network | |||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, SSL, QoS | ||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||||
| Pan & Tilt | |||||||
| Pan Range | 360° | ||||||
| Pan Speed | 0.1°/s ~ 240°/s | ||||||
| Preset speed: 300°/s | |||||||
| Tilt Range | -15° ~ 90° (auto reverse) | ||||||
| Tilt Speed | 0.1° ~ 80°/s | ||||||
| Preset speed: 80°/s | |||||||
| Number of Presets | 1024 | ||||||
| Patrol | Preset patrol, route patrol, recorded patrol | ||||||
| Home Position | Supported | ||||||
| Interface | |||||||
| Audio I/O | 1 Input: impedance 35k?; amplitude 2V p-p | ||||||
| 1 Output: impedance 600?; amplitude 2V p-p | |||||||
| Alarm I/O | 1/1 | ||||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||||
| General | |||||||
| Power | DC 12V±10%, PoE (PSE Required) | ||||||
| Power consumption: 16 ~ 30W | |||||||
| Dimensions (Ø x H) | ?215 × 344mm (?8.5” x 13.5”) | ||||||
| Weight | 3kg (6.6lb) | ||||||
| Working Environment | -40°C ~ 65°C (-40°F ~ 149°F), Humidity: ?95% RH (non-condensing) | ||||||
| Ingress Protection | IP66 | ||||||
| Reset Button | Supported | ||||||
