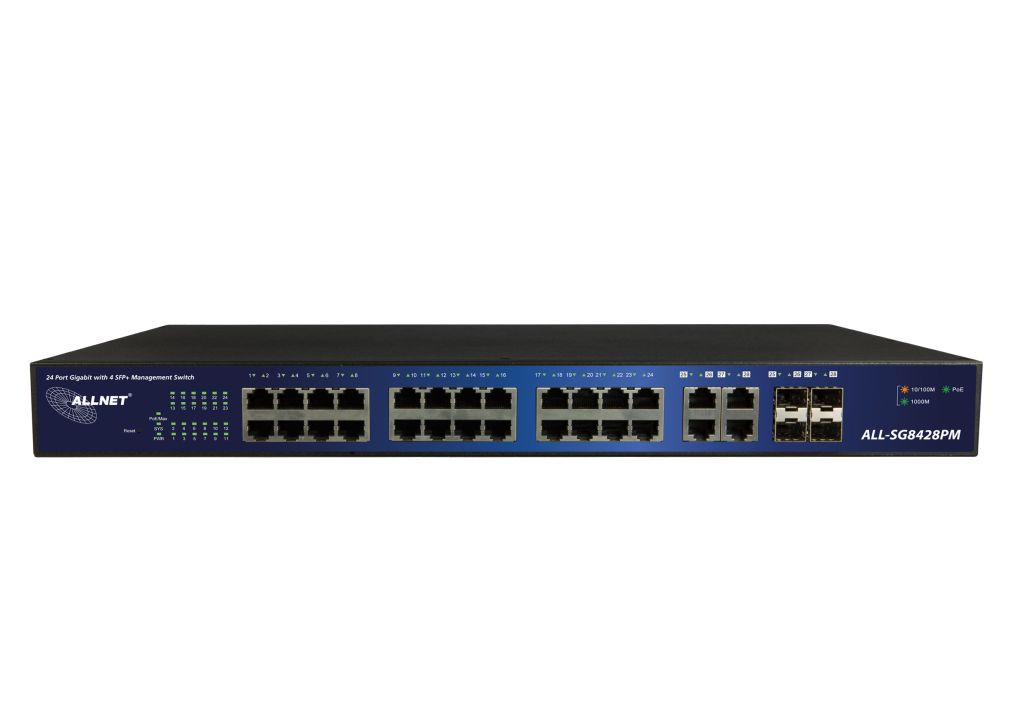

ALLNET Switch smart managed 24 Port Gigabit 390W – 24x PoE+ – 4x SFP – 19″ – ALL-SG8428PM

Preis anfragen
SKU: 139327 Kategorie:

24 Port Web Managed Gigabit Layer-2 PoE Switch + 4x SFP MiniGbic Slots, 390W PoE Budget

Highlights:

  • 24 Port Gigabit non-blocking Switch Architektur
  • Unterstützt NWay Protocol (10/100/1000Mbps) und Duplexmodus (half/full) Auto Detektion
  • support back-pressure (half duplex), flow control (IEEE 802.3x und IEEE 802.3az Energy Efficient Ethernet
  • VLAN: Port basiert / Tagged basiert
  • Link Aggregation (IEEE802.3ad LACP)
  • IGMP Snooping (v1/v2)
  • QoS (Port Based, Flow, 802.1p, IP-TOS, IP DSCP)
  • Stormcontrol (Broadcast, Multicast, Unicast)
  • 390W PoE Budget unterstützt PoE IEEE802.3af/at PSE-Devices
  • 2x interne Lüfter, welche via Hot-Swap ausgetauscht werden können

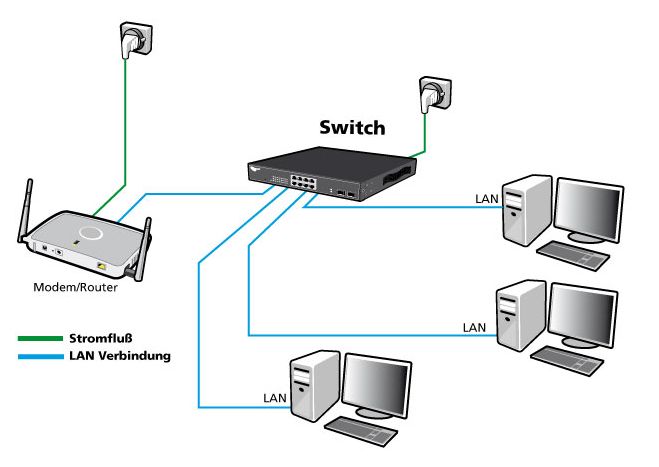

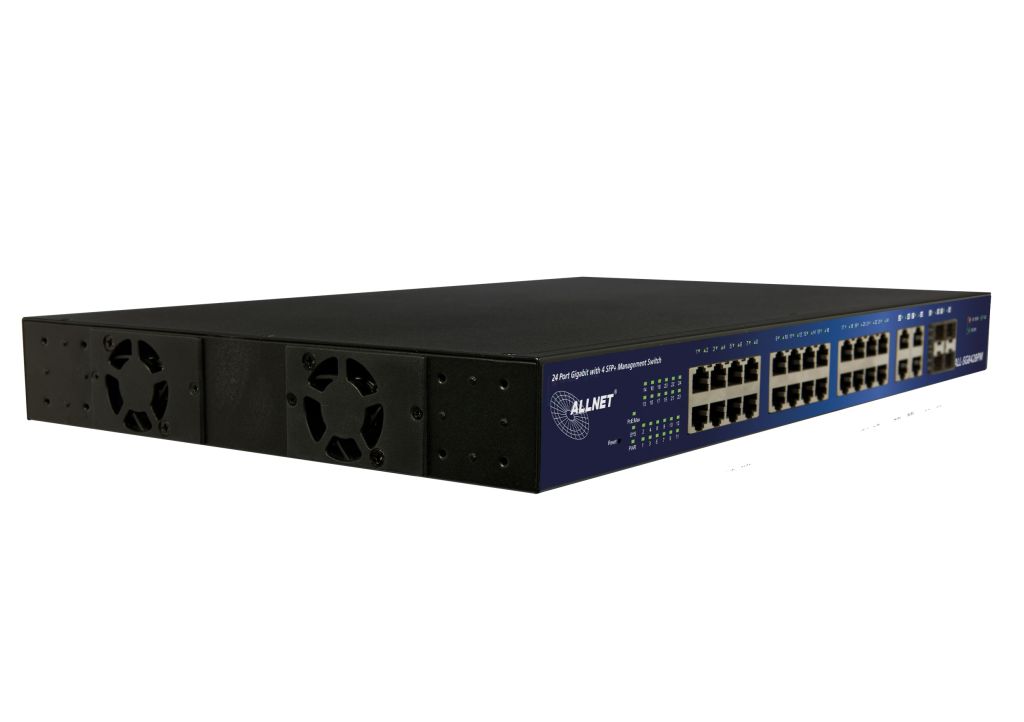

Der neue ALLNET ALL-SG8428PM Switch stellt eine optimale Basis für kleine und mittlere Arbeitsgruppen mit hohem Netzwerk- und Datenaufkommen dar und ermöglicht eine schnelle Datenübertragung im Netzwerk. Mit insgesamt 24 abwärtskompatiblen Gigabit Ports sind die angebundenen Rechner und Server zuverlässig und leistungsstark miteinander verbunden. Der ALL-SG8428PM kann durch das interne 450W Netzteil ein maximales PoE Budget von 390W an die Endgeräte weiterreichen. Die 24 Gigabit PoE Ports unterstützen den PoE Standard IEEE802.3af und den IEEE802.3at Standard. Im Switch sind seitlich 2 Lüfter verbaut, die durch lösen von jeweils 2 Schrauben per Hot-Swap bei einem Defekt schnell und einfach ausgetauscht werden können.

Das robuste Gehäuse aus Metall ist sowohl für die Montage im 19“ Schrank, als auch zur Wandmontage geeignet.

Technische Details:

Items Spezifikationen
Key Components RTL8382M+RTL8218Bx2+RTL8214FC PD69200+PD69208x3
I/O Ports 24x GbE Ports, RJ45 4x GbE Combo Ports, RJ45 + SFP
PoE Ports Port 1~ 24 IEEE802.3at, IEEE802.3af PoE power budget: 390W for 450W power supply
LED Define

SYS: Green LED

  • Off: power off or fail
  • On: power on
  • Blinking: system booting up

PoE Max. :Green LED

  • Off: No over PoE max power budget (390W)
  • On: Over PoE max power budget (390W)

24 RJ45 Port LED: one bi-color LEDs on daughter board
Link/ACT: Green/Amber

  • Off: port disconnected or link fail
  • Green on: 1000Mbps connected
  • Amber on: 10/100Mbps connected
  • Blinking: sending or receiving data

PoE: Green LED

  • Off: PoE power output off
  • Green on: PoE power output on
  • Blinking: PoE power output over >30W (No Powering)

4 Combo port LED: RJ45: one bi-color LEDs on daughter board

  • Off: disconnected or fail
  • Green: 1000Mbps connected
  • Amber: 10/100Mbps connected
  • Blinking: data transmitting

SFP: one LEDs on daughter board

  • Off: disconnected or fail
  • Green: 1000Mbps connected
  • Blinking: data transmitting
Standards IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE802.3ab 1000BASE-T
IEEE802.3az EEE (Energy efficient Ethernet)
IEEE 802.3af,Power Over Ethernet
IEEE 802.3at,Power Over Ethernet Plus
IEEE 802.3ad, Link Aggregation
IEEE 802.3x, Ethernet flow control
IEEE 802.1AB-2005,LLDP( Link Layer Discovery Protocol)
IEEE 802.1d, Spanning Tree Protocol
IEEE 802.1w, Rapid Spanning Tree Protocol
IEEE 802.1q, VLAN
IEEE 802.1p,QoS
IEEE 802.1x
HW feature

• Switch Capacity: 52Gbps bi-direction
• Forwarding Mode: Store and Forward
• MAC address Table: 8K
• Packet buffer size: 1M bit
• Jumbo Frame: 9K bytes

VLAN • 4K VLANs
• Port-based VLANs
• Voice VLAN
Spanning Tree • STP(Spanning Tree Protocol)
• RSTP( Rapid Spanning Tree Protocol)
Link Aggregation • Max 8 aggregation groups, each supports 8 ports
• Static aggregation and dynamic aggregation
Port Mirroring Many-to-one port mirroring
QoS • Rate limiting on packets sent and received by an interface
• Eight queues on each port
• WRR, SP, WRR+SP queue scheduling algorithms
• Re-marking of the 802.1p priority and DSCP priority
• Rate limiting in each queue and traffic shaping on ports
Power Input Internal power supply
Input: 100-240V AC
E-cap life time >3 years @ 40°C
PoE Output power capacity

Maximum output: 30W per each port

  1. Compliant with IEEE802.3af/at standard, following IEEE802.3a and IEEE802.3at Standard to support PoE or PoE+.
  2. Automatically discover the connection of PD device and immediately sends power to it.
  3. Auto disable port if the port current is over 700mA or short happens.
  4. Priority can be configured and default setting is lower port No. has hight priority
  5. The maximum power used by power devices is defined by the following classification. When Port works in Auto Mode,
    the output port power limit will be associated with PD Classification Value.

    Class Usage Minimum Power Levels Output at the PSE Maximum Power Levels at the Powered Device
    0 Default 15,4W 0,44 to 12,95W
    1 Optional 4,0W 0,4 to 3,84W
    2 Optional 7,0W 3,84 to 6,49W
    3 Optional 15,4W 6,49 to 12,95W
    4 Optional 30W 12,95 to 25,5W



  6. Follow the standard PSE pin-out standard of Alternative A (MDI-X) which is sending out power over number 1,2,3,6 pins
    of 8 wires of Ethernet CAT5 UTP cable.
PoE • PoE Scheduling
• PoE Port Priority
• Power Limit per port
• PoE On/Off
Power Adapter 450W power supply
Reset button Support reset to default config
Network • Support IPv6
• System Time (SNTP, Manually, From Computer)
Traffic Management and QoS • Port-based VLAN
• IEEE 802.1Q VLAN tagging
• IEEE 802.3ad LACP
• Storm control
• IEEE 802.1p priority queues per port
• IEEE 802.1p Queuing method (scheduler)
• Input priority mapping
• Rate limiting per port (ingress/egress)
• IEEE 802.3x flow control
Class of Service (CoS) • IEEE 802.1p class of service (SPQ, WRR)
• Port-based CoS
• IP TOS precedence
• 802.1p VLAN Information based CoS
• DSCP based CoS
• TCP/UDP Based CoS
PoE Control • Port On/Off
• Port Priority
• Power limit (watt) per port
• Scheduling
Security

• IEEE 802.1x
• Port security
• Port Isolation
• IP filtering
• DoS attack defense, ARP attack defense, and ICMP attack defense
• Loop Prevention
• STP (IEEE 802.1d)
• User privilege management and password protection
• RADIUS
• TACACS+
• AAA

Layer 2 Multicast • IGMP snooping (v1, v2)
Management and maintenance • SNMP v1/v2c
• SNMP Trap Event
• Remote configuration and maintenance using Telnet
• Web NMS
• System logs and alarms of different levels
• Support HTTPS, TELNET, SSH
IPv6 • IPv6 over Ethernet (RFC 2464)
• Dual-stack (RFC 4213)
• ICMPv6 (RFC 4884)
• Neighbor discovery (RFC 4861)
• Auto configuration
• Static IPv6 address and prefix length
• Static IPv6 default gateway
• IPv6 duplicate address detection
Network Management • LLDP ( IEEE 802.1ab)
• Cable test
• ICMP echo/echo reply (Ping)
• Port mirror
System Manage • Firmware Upgrade
• Configuration Back up & Restore
Safety • CE, LVD
• EN60950-1
EMC • FCC Part15
• CE Class A
Dimension 441mm x 270mm x 45mm
FAN Design Fan*2 with Fan tray “Hot-Swapable changeable”
Temperature Operating: 0 ~ 40°C Storage : -40 ~ 70°C
Humidity Operating: 10% ~ 90% RH (non-condensing) Storage : 5% ~ 90% RH (non-condensing)
Gewicht 5,7 kg
Größe 216 × 133 × 42 cm
EAN

4038816139320

Hersteller

ALLNET

Herstellerartikelnummer

ALL-SG8428PM

Garantie

24 Monate

Datenblatt_EN

https://shop.allnet.de/media/pdf/87/15/26/139327-Datenblatt_EN.pdf

CE

https://shop.allnet.de/media/pdf/9f/g0/3d/139327-CE.pdf

Anzahl Ports PoE/LAN

24/0

Belüftung Switch

Mit Lüfter

Einsatzort Switch

19\"

PoE Budget

<500 Watt

LAN Geschwindigkeit

1Gbit/S

PoE Port Leistung

30W at

SFP Geschwindigkeit

SFP 1GBit

SFP Port Anzahl

4

Management

smart managed (WebGui)
