MikroTik RouterBOARD RB2011UiAS-RM, 5x Gigabit, 5x 10/100, USB, Rackmount

Preis anfragen
SKU: 115560 Kategorie:

RouterBOARD 2011UiAS with Atheros 74K MIPS CPU, 128MB RAM, 1xSFP port, 5xLAN, 5xGbit LAN, RouterOS L5, 1U,rackmount case, PSU, LCD panel


The RB2011 is a low cost multi port device series. Designed for indoor use, and available in many different cases, with a multitude of options.

The RB2011 is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring – just a few of the vast number of features supported by RouterOS.

RouterBOARD 2011UiAS-RM, in comparison with RB2011L series, not only has five Gigabit LAN ports and five Fast Ethernet LAN ports, but also has RJ45 serial port, microUSB port and more RAM (128MB instead of 64MB). Also, it has RouterOS L5 license (instead of L4) and nice touchscreen LCD for configuration. SFP cage is also present (SFP module not included!)

There is PoE output function for port #10 – it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.

Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)

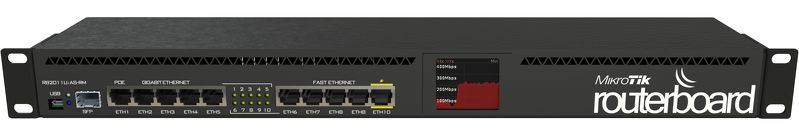

RouterBOARD 2011UiAS-RM comes with 1U rackmount enclosure, LCD panel and power supply.

Product specifications


Product code RB2011UiAS-RM


CPU nominal frequency 600 MHz

CPU core count 1

Size of RAM 128 MB

10/100 Ethernet ports 5

10/100/1000 Ethernet ports 5

MiniPCI slots 0

MiniPCI-e slots 0

Wireless chip model AR9344-DC3A-R

Number of USB ports 1

Power Jack 1

802.3af support No

Supported input voltage 9 V – 28 V

PoE in Yes

PoE out No

Voltage Monitor Yes

CPU temperature monitor No

PCB temperature monitor Yes

Dimensions 214mm x 86mm for PCB

Operating System RouterOS

Operating temperature range -35C to +65C

License level 5

Antenna gain DBI No

Current Monitor No


SFP ports 1

SFP+ ports 0

USB slot type microUSB type AB

Number of chains 0

Serial port RJ45

Suggested price $119.00

Gewicht 0,82 kg
