RouterBOARD 800 with MPC8544 800MHz CPU, 256MB RAM, 3 Gbit LAN, 4 MiniPCI, 1 MiniPCI-e slot, RouterOS L6
RB800

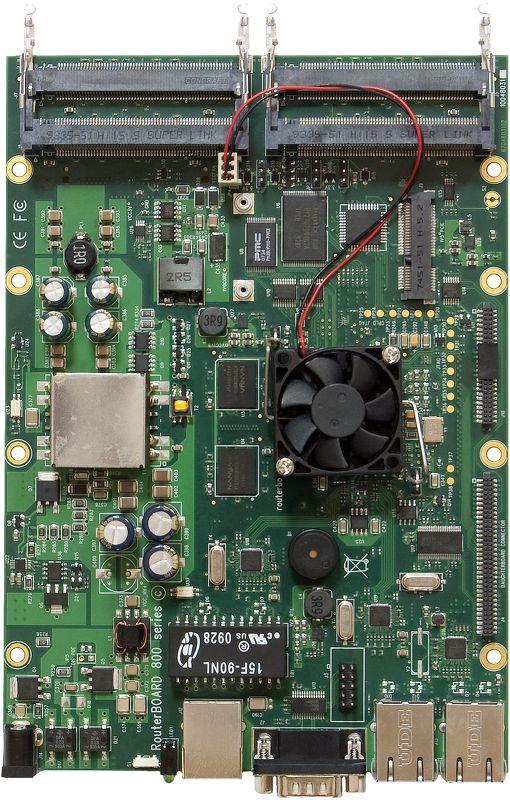

The RB800 is an advanced high performance wireless platform. It has four miniPCI slots, three Gigabit ethernet ports, two daughterboard connectors (one PCI and one PCI-e), a miniPCI-e slot and a compact flash slot.
The two daughterboard connectors allow you to expand the number of wired and wireless ports, and the new high power CPU is capable of supporting them all.
RB800 has daughterboard connector, so you have a lot of expansion possibilities. You can buy RB502 to add two miniPCI slots, RB604 to add four miniPCI slots or RB816 to add 16 Ethernet ports!
This is the new definition of wireless networking power. Combined with RouterOS – RB800 is the most powerful and sophisticated wireless router, firewall and bandwidth manager.
Product specifications
Details
Product code RB800
CPU nominal frequency 800 MHz
CPU core count 1
Size of RAM 256 MB
Architecture PPC
10/100 Ethernet ports 0
10/100/1000 Ethernet ports 3
MiniPCI slots 4
MiniPCI-e slots 1
Wireless chip model None
Number of USB ports 0
Memory Cards 1
Memory card type CF
Power Jack 1
802.3af support Yes
PoE in 802.3af
Voltage Monitor Yes
CPU temperature monitor Yes
PCB temperature monitor No
Dimensions 14cmx20cm
Operating temperature range -75? to +65?
License level 6
Antenna gain DBI No
Current Monitor No
CPU MPC8533EVTALF
SFP ports 0
SFP+ ports 0
Number of chains 0
Serial port RS232
Suggested price $359.00
